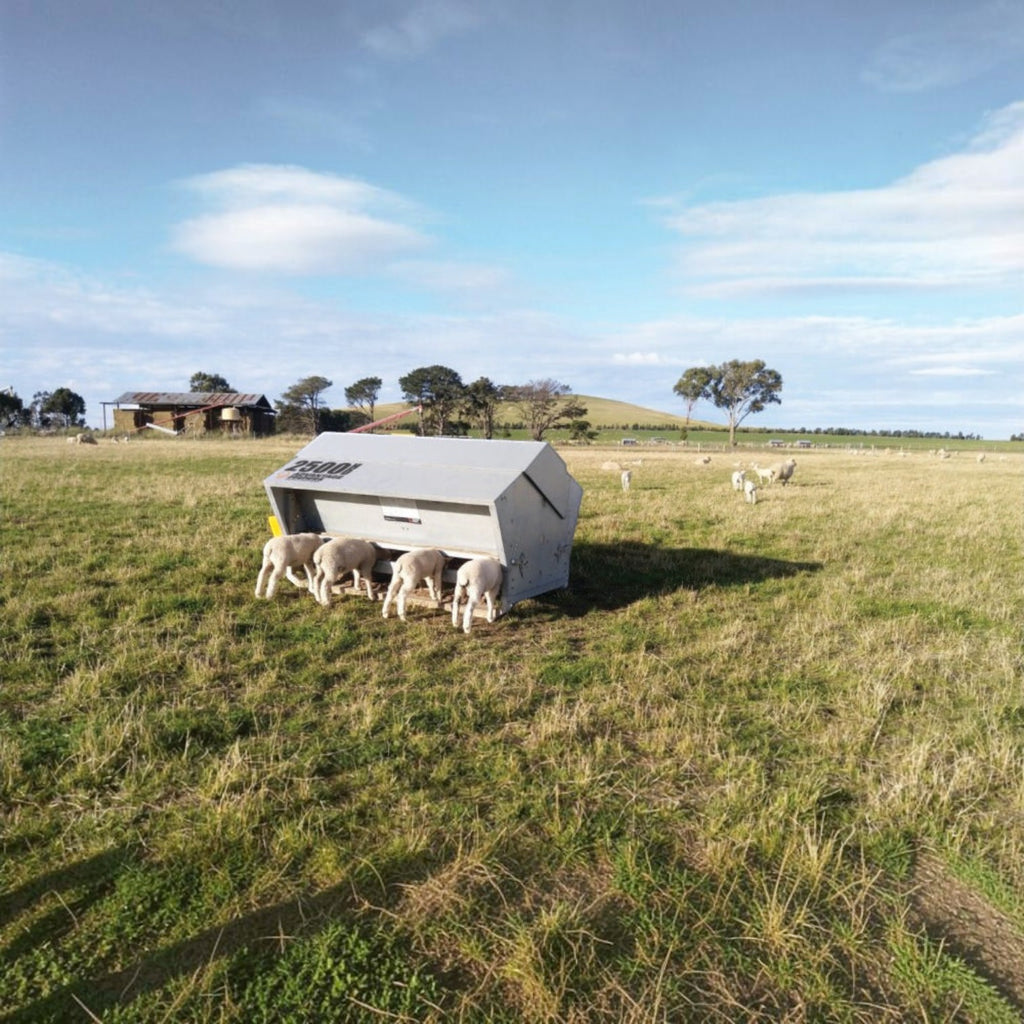

The Advantage M2500HD is a heavy-duty livestock feeder designed to provide more strength, longer service life, and greater feed control. Available with wheels or skids, the M2500HD gives producers the flexibility to choose the setup that best fits their feeding and pasture management system.
Featuring reinforced stainless steel components and Advantage's precise 3-way saliva restriction system, the M2500HD is designed to reduce feed waste while providing consistent, controlled access to supplemental feed.
Key Features
Wheels or Skids Available: Choose the configuration that works best for your operation and feeder-moving requirements.
Precise 3-Way Saliva Restriction System: Helps minimize feed contamination and waste while improving feed efficiency.
Reinforced Stainless Steel Components:

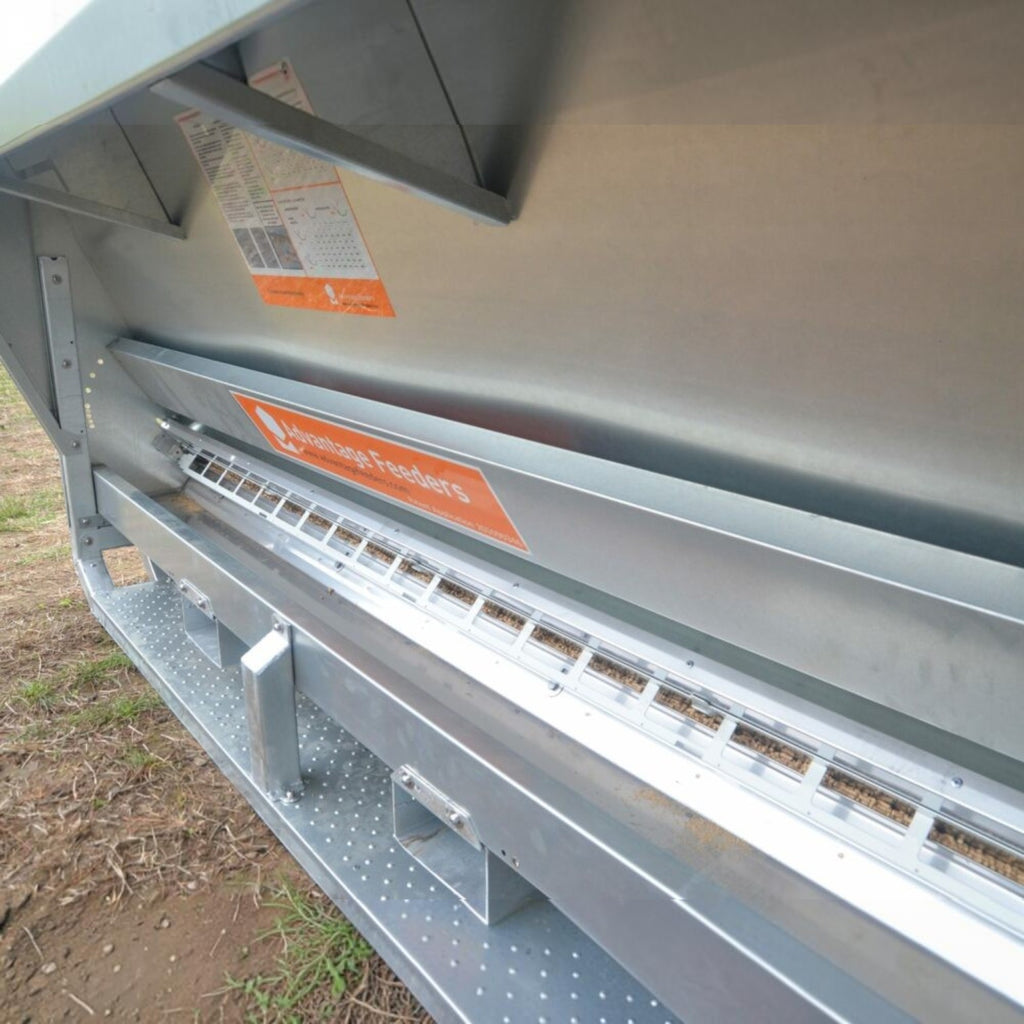

Reinforced stainless steel troughs
Reinforced stainless steel upper adjusters
Reinforced stainless steel lower adjusters
Heavy-Duty Construction: Designed for demanding cattle and livestock feeding applications.
High-Capacity Hopper: Holds approximately 51 bushels of feed to reduce refill frequency.
Adjustable Feed Control: Allows producers to precisely manage feed flow and livestock consumption.
Weather Protection: Designed to help protect valuable feed from rain and moisture.
Service-Friendly Design: Includes convenient adjustment and maintenance features for everyday operation.
Feed Capacity
Feed Volume:51 Bushels
Approximate capacity by feed type:
Wheat/Corn: 3,000 lbs. (1.5 tons)
Barley/Pellets: 2,600 lbs. (1.3 tons)
Oats: 2,200 lbs. (1.1 tons)
Recommended Animal Capacity
Livestock
Recommended Capacity
Cattle
Up to 50 head
Sheep
Up to 150 head
Standard Measurements
Length: 8 ft. Width: 5 ft. 5 in. Height: 4 ft. 9 in. Weight: Approximately 750 lbs. Trough Length: 94 in. Trough Depth: 4.5 in.
Specifications may vary depending on wheel or skid configuration.
Additional Features
Two adjuster guards standard
Adjuster guard storage when not in use
Dual-position adjuster guards for dusty feeds
Hot-dip galvanized components
Z275 galvanized sheet metal
Reinforced sidewall construction
Adjustable-width tine guides
Reinforced adjuster braces
Locking bolts on lower adjusters
Painted notch adjustment system
Sight glasses for checking feed levels
Side gutters help drain moisture away from the feeder
Reinforced roof edges
Cleaning tool supplied
Tube spanner supplied
Secure onboard tool storage
Available Options

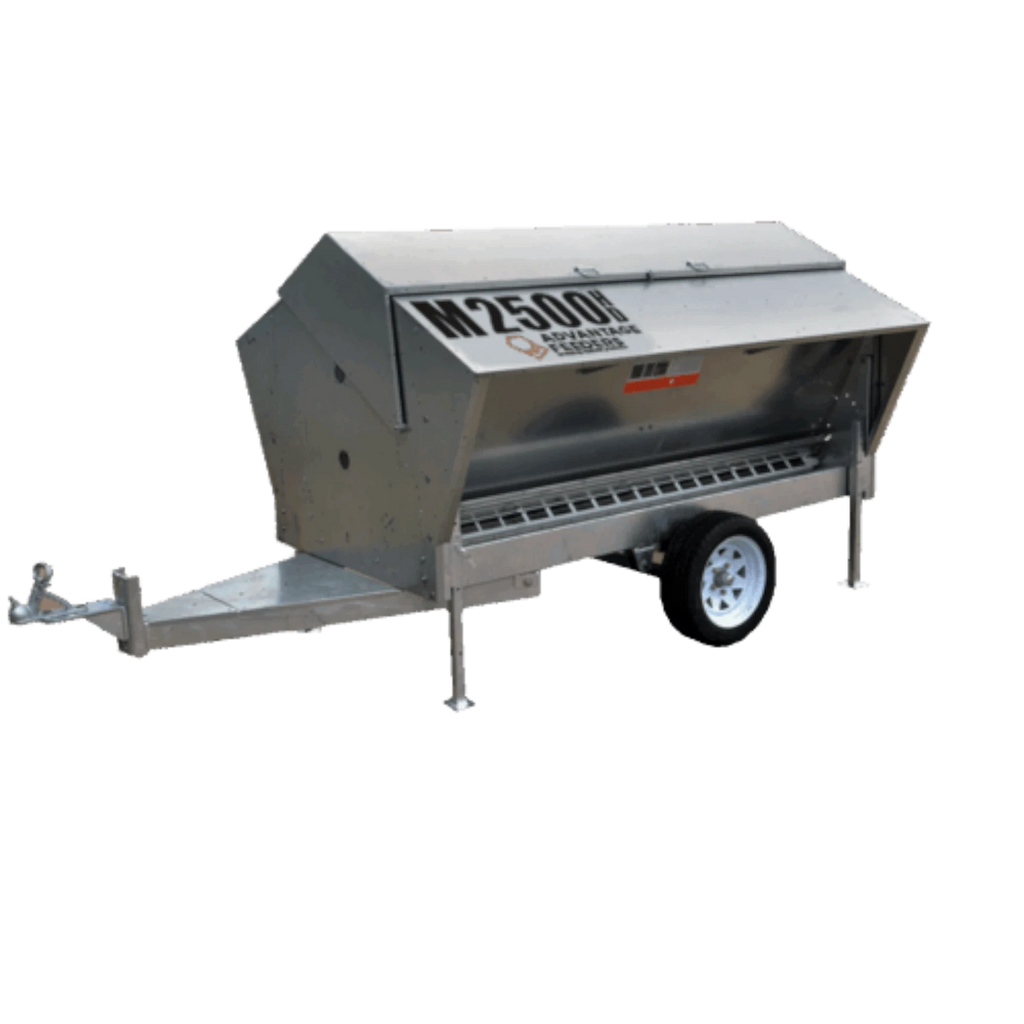

Wheel configuration
Skid configuration
Mineral attachment
Calf creep feeding gate
Lamb creep feeding panel
Rubber mat option
Common Applications
Beef cattle supplementation

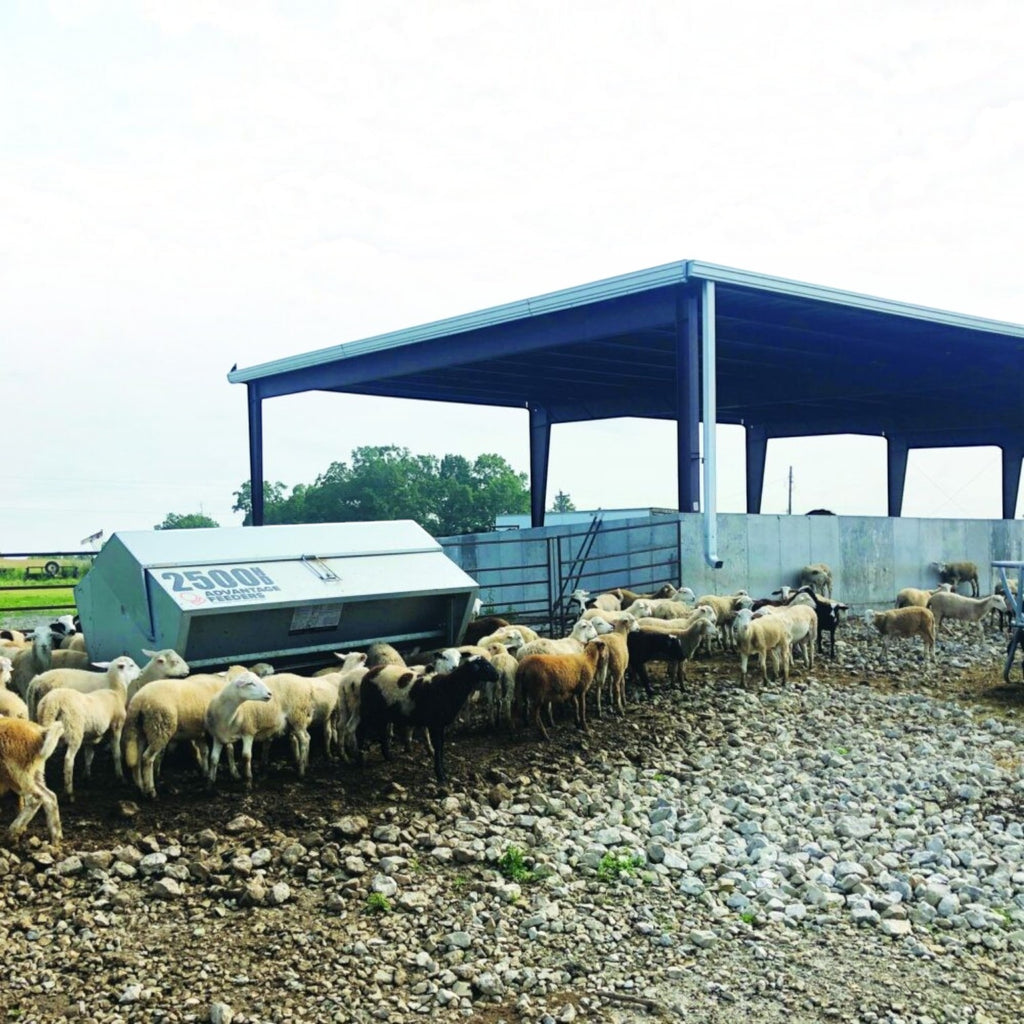

Sheep feeding
Cow-calf operations
Pasture feeding
Feedlot feeding
Rotational grazing
Winter supplementation
Use Summary
The Advantage M2500HD – Wheels or Skids combines heavy-duty construction, high feed capacity, and precise feed control in a versatile livestock feeder. Whether configured with wheels for increased mobility or skids for a rugged stationary setup, the M2500HD provides producers with a durable solution for reducing feed waste and improving livestock feeding efficiency.
