Advantage Cradle Hay Feeder 5' Small Animal

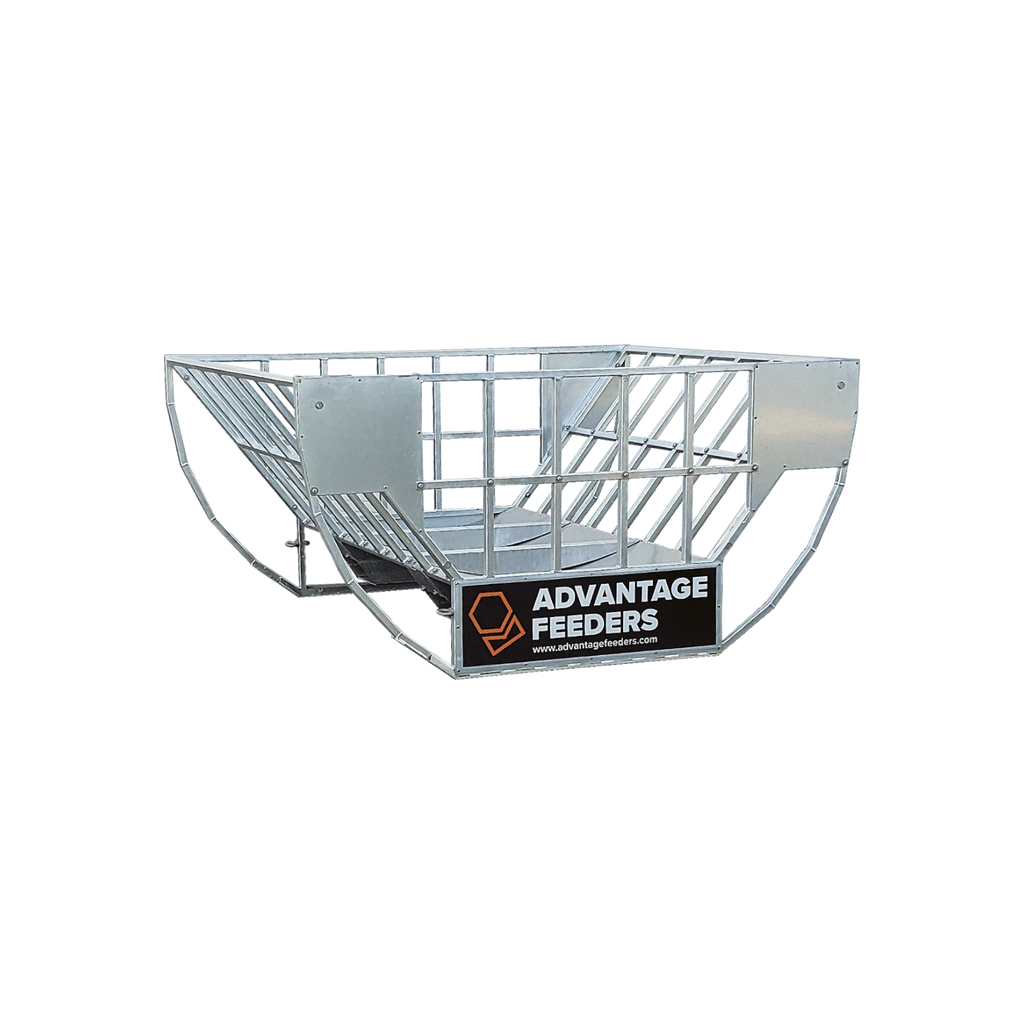

Cradle Hay Feeder

The Cradle Hay Feeder is a heavy-duty round bale feeder designed to reduce hay waste while providing safe, easy access for livestock. Featuring a reinforced stainless steel tray, hot-dip galvanized steel frame, and an innovative roll loading system, the Cradle Hay Feeder makes loading simple while keeping the bale low to the ground for safer feeding.

Its adjustable side bars and narrow bar spacing help maximize hay utilization and minimize waste, making it an excellent choice for cattle and horse operations.

Key Features

Stronger, Last Longer, More Control

Roll Loading System: Easily load a round bale by rolling it into the feeder, reducing labor and equipment requirements.

Reinforced Stainless Steel Tray: Heavy-duty stainless steel floor resists corrosion and provides years of dependable service.

Heavy-Duty Galvanized Frame: Constructed from hot-dip galvanized square steel tubing (SHS) for superior strength and corrosion resistance.

Adjustable Height Side Bars: Easily adjust side bar height to accommodate changing bale sizes and feeding conditions.

Safer Low Bale Height: Low-profile design provides easy livestock access while improving stability.

Narrow Feed Openings: 8" bar spacing helps reduce hay waste by preventing livestock from pulling excessive hay from the feeder.

Drainage System: Floor drainage holes allow moisture to escape, helping keep hay drier and reducing spoilage.

Rounded Safety Design: Corner cover plates reduce the risk of livestock injury.

Easy Transport: Integrated towing loops make moving the feeder around the farm quick and convenient.

Roof Compatible: Optional Hay Feeder Roof available for additional weather protection.

Specifications

Weight: 200 lbs.

Assembled Dimensions:

• Length: 6 ft. 1 in.
• Width: 4 ft. 6 in.
• Height: 3 ft.

Flat-Pack Dimensions:

• Length: 6 ft. 1 in.
• Width: 3 ft.
• Height: 6 in.

Bale Capacity:

• One 4 ft. × 6 ft. round bale

Additional Features

• Reinforced stainless steel floor
• Drainage holes reduce moisture buildup
• Hot-dip galvanized SHS frame
• Heavy-duty 3" wide skids
• Adjustable height side bars
• Two towing loops
• Roll loading system
• Low bale feeding height for improved safety
• Corner cover plates for livestock protection
• Narrow 8" feed openings help reduce hay waste
• Optional Hay Feeder Roof available
• Bale positioned to shed rainwater

Important Note

The standard spacing between the feed bars is not recommended for cattle between 6 and 18 months of age. Please evaluate your livestock size before use.

Common Applications

• Beef cattle operations
• Cow-calf operations
• Horse feeding
• Pasture feeding
• Winter feeding programs
• Round bale feeding

Use Summary

The Cradle Hay Feeder combines durability, livestock safety, and efficient hay utilization in a compact, easy-to-use design. Its roll loading system, adjustable side bars, stainless steel tray, and galvanized construction help reduce hay waste while providing years of dependable performance in demanding agricultural environments.
